Video Balun Selection Guide for CCTV
Guide to selecting video baluns for CCTV systems.
Introduction
Video baluns are essential components in modern CCTV installations, enabling video transmission over cost-effective UTP (unshielded twisted pair) cable instead of expensive coaxial cable. This guide helps you select the right balun for your specific application.

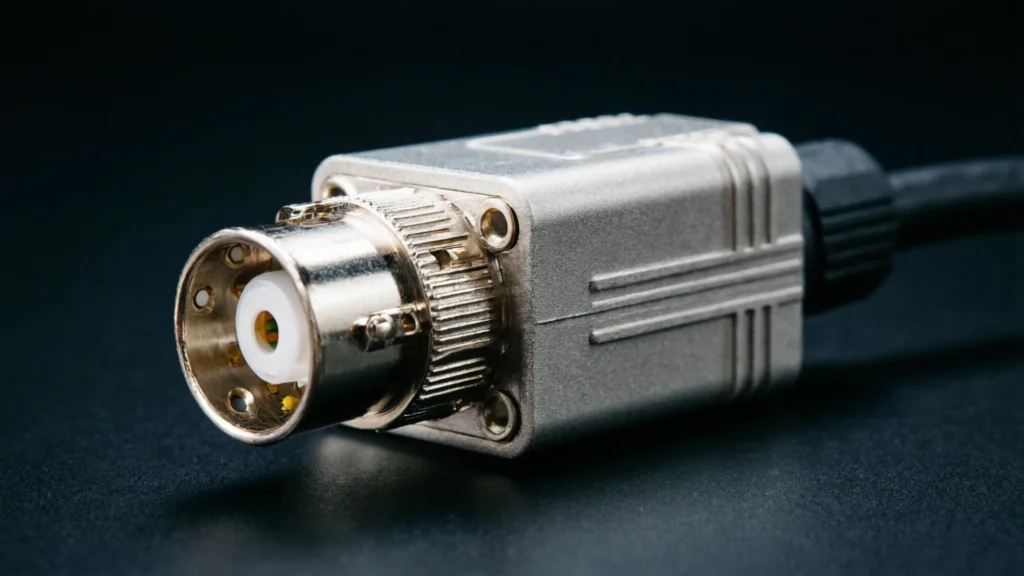

What is a Video Balun?
A balun adapts impedance between coaxial cable (75 ohm) and twisted pair cable (100 ohm). It allows CCTV video signals to travel longer distances with better signal quality over common Ethernet cable.
Types of Video Baluns
Passive Baluns
- Range: Up to 300 meters (depending on quality)
- Power: No external power required
- Cost: Lower
- Best for: Short to medium runs, residential and small commercial
Active (Powered) Baluns
- Range: Up to 1500 meters
- Power: Requires 12V DC power
- Signal quality: Better for long distances, includes signal amplification
- Best for: Large commercial installations, campus deployments
Combined Power and Video Baluns
- Transmit video and power over single UTP cable
- Reduce cable runs and installation cost
- Popular for IP camera installations using PoE alternatives
Selection Criteria
Distance
| Distance | Recommended Balun Type |
|---|---|
| Under 150m | Passive balun |
| 150m - 500m | Active balun |
| Over 500m | Active balun with signal regeneration |
Camera Type
- Analog CCTV: Standard video balun (baseband video)
- HD-CVI/HD-TVI/AHD: Matched baluns for high-definition analog formats
- IP Cameras: Use network baluns or direct CAT5e/6 connection
Installation Environment
- Indoor: Standard baluns suitable
- Outdoor: Weatherproof rated baluns required
- High-interference areas: Shielded baluns with better EMI rejection
Technical Specifications
Bandwidth Requirements
- Standard CCTV (960H): 20 MHz bandwidth
- HD Analog (720p/1080p): 40-60 MHz bandwidth
- Verify balun bandwidth matches camera resolution
Common Formats
| Format | Resolution | Bandwidth | Balun Requirement |
|---|---|---|---|
| Analog | 960H | 20MHz | Standard |
| AHD/TVI/CVI | 720p | 40MHz | HD-rated |
| AHD/TVI/CVI | 1080p | 60MHz | HD-rated |
Installation Tips
Cable Requirements
- CAT5e: Most common, supports all but longest runs
- CAT6: Better for longer distances and future-proofing
- Never use CCA (Copper Clad Aluminum) cable - higher resistance causes signal loss
Wiring Configuration
For 4-wire UTP cable (common for combined power + video):
- Red/Black: Power (+/-)
- White/Orange: Video signal (pair 1)
- Green/Blue: Optional second channel or data
Termination
- Use consistent pinout across entire installation
- Ground one end of the cable shield to prevent ground loops
- Keep away from high-voltage AC lines to avoid interference
FAQ
Q: Can I use any CAT5e cable for video balun installations?
A: Use solid copper CAT5e or CAT6, not CCA (Copper Clad Aluminum). CCA has higher resistance causing signal degradation over distance.
Q: What is the maximum distance for passive video baluns?
A: Quality passive baluns typically support up to 300 meters. Budget baluns may be limited to 150 meters or less.
Q: Do active baluns require power at both ends?
A: Typically only at one end (receive side). The power is injected at one location and can power the transmitter at the camera end if using combined power+video baluns.
