CCTV Power Supply Selection: 12V vs 24V
CCTV power supply guide comparing 12V DC vs 24V AC.

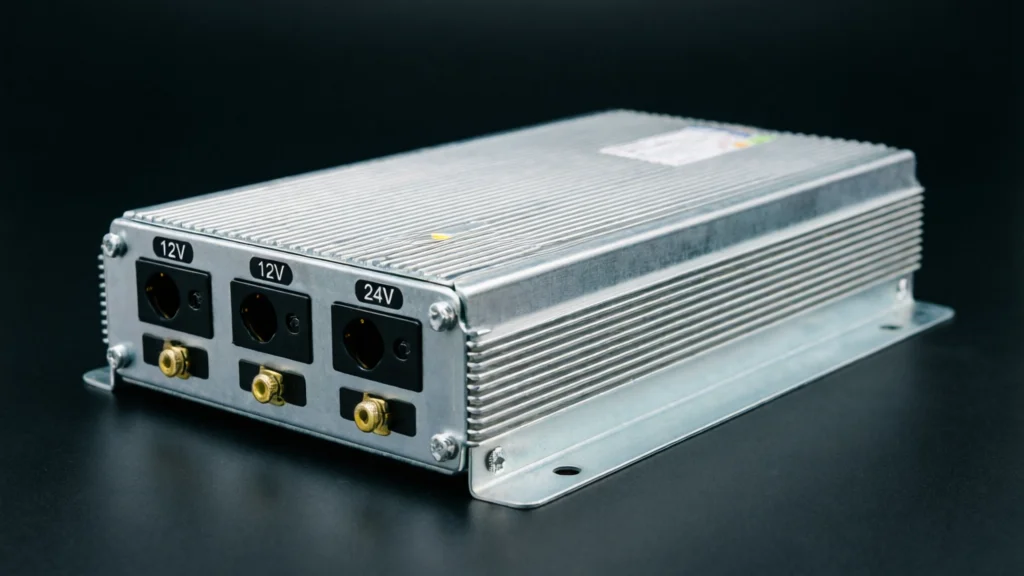

Understanding CCTV Power Supply Options
Selecting the correct power supply voltage is crucial for CCTV system reliability and performance. The two most common options are 12V DC and 24V AC, each with distinct advantages.
12V DC Power Supply
Advantages
12V DC is the most common choice for small to medium installations. It offers wide compatibility with most security cameras, easy availability of power supplies, and lower cost components.
Disadvantages
12V DC experiences significant voltage drop over longer cable runs. Maximum recommended distance is approximately 100 feet (30m) with proper gauge wire.
Best Applications
Ideal for small business and residential installations with short cable runs. Best when cameras are clustered near the power source or DVR.
24V AC Power Supply
Advantages
24V AC experiences less voltage drop over distance, allowing runs up to 300 feet (90m) with the same wire gauge. Provides better performance in challenging electrical environments.
Disadvantages
Fewer camera models support 24V AC. Slightly higher cost for power supplies and transformers.
Best Applications
Large installations with longer cable runs. Commercial properties with distributed camera locations. Environments with power quality issues.
Voltage Drop Considerations
Voltage drop depends on cable length, wire gauge, and current draw. Use online calculators for precise planning.
Power Supply Sizing
Add up camera amperage requirements and add 20% buffer. Example: 4 cameras at 500mA each = 2A, plus buffer = 2.4A minimum power supply.
FAQ
Can I mix 12V and 24V cameras?
No. Each camera must receive its specified voltage. Use separate power supplies or voltage-specific distribution.
What happens if I use wrong voltage?
Under-voltage causes camera malfunction. Over-voltage damages camera electronics immediately.
Can I use PoE instead?
Yes. Power over Ethernet (48V) eliminates voltage drop issues and simplifies installation.
Conclusion
12V DC suits small installations with short runs; 24V AC excels in larger systems with longer distances. Choose based on your specific camera locations and cable run lengths.
